Grandstream UCM6300 Series IP PBX

The UCM6300 series allows businesses to build powerful and scalable unified communication and collaboration solutions. This series of IP PBXs provide a platform that unifies all business communication on one centralized network, including voice, video calling, video conferencing, video surveillance, web meetings, data, analytics, mobility, facility access, intercoms and more. The UCM6300 series supports up to 3000 users and includes a built-in web meetings and video conferencing solution that allows employees to connect from the desktop, mobile, GVC series devices and IP phones. It can be paired with the UCM6300 ecosystem to offer a hybrid platform that combines the control of an on-premise IP PBX with the remote access of a cloud solution. The UCM6300 ecosystem consists of the Wave app for web and mobile, which provides a hub for collaborting remotely, and UCM RemoteConnect, a cloud NAT traversal service for ensuring secure remote connections. The UCM6300 series also offers cloud setup and management through GDMS and an API for integration with third-party platforms. By offering a high-end unified communications and collaboration solution packed with a suite of mobility, security, meeting and collaboration tools, the UCM6300 series provides a powerful platform for any organization.

Features

  • Supports up to 3000 users and up to 450 concurrent calls
  • Zero configuration provisioning of Grandstream SIP endpoints
  • Built-in conferencing & meetings platform; supports desktop, Wave app, and SIP endpoints
  • Wave for Android, iOS, Chrome and Firefox browsers allows communication with all UCM6300 users & solutions
  • API available for third-party integrations, including CRM and PMS platforms
  • Advanced security protection with secure boot, unique certificate and random default password to protect calls and accounts
  • Three Gigabit auto-sensing RJ45 network ports with integrated PoE+ and support NAT router
  • Automated NAT firewall traversal service facilitates secure remote connections
  • Supports Full-Band Opus voice codec and H.264/H.263/ H.263+/H.265/VP8 video codec, jitter resilience up to 50% packet loss
  • Compatible with GDMS for cloud setup, management and monitoring
  • Based on Asterisk* version 16 open source telephony operating system
Category:

Enquiry about Grandstream UCM6300 Series IP PBX

IP Phones

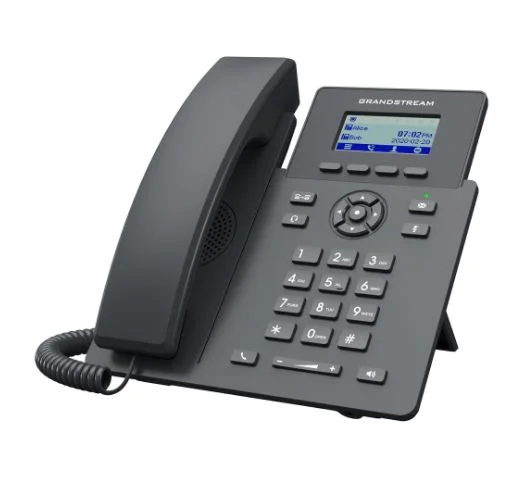

GRP2601P 2 Lines, 2 SIP Account, 10/100Mbps, 132×48 screen, PoE

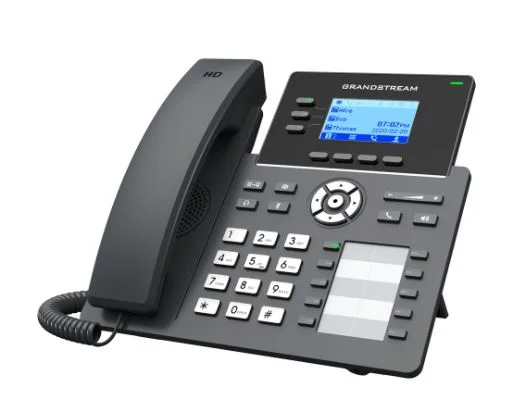

GRP2604P 3 Lines, 6 SIP Accounts, 10 BLF, 134×62 screen, Gigabit Ethernet ports, PoE

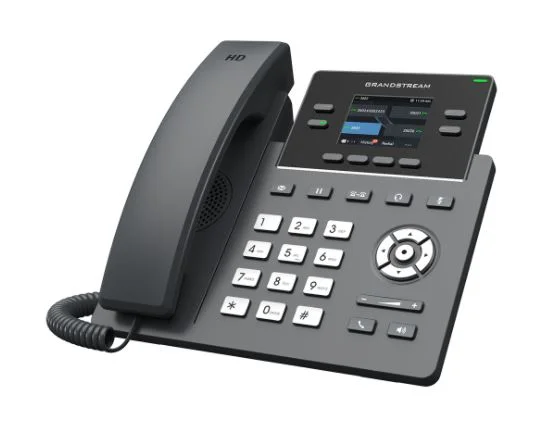

GRP2612W 4 Lines, 2 SIP Accounts, 2.4 in screen, Color, 100Mbps, WIFI, PoE with Power Adapter

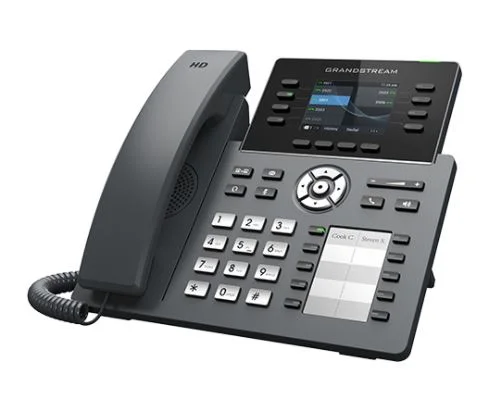

GRP2634 8 lines, 4 SIP Accounts, Gigabit, WiFi/BT, Colour Screen, 10 paper based BLF keys

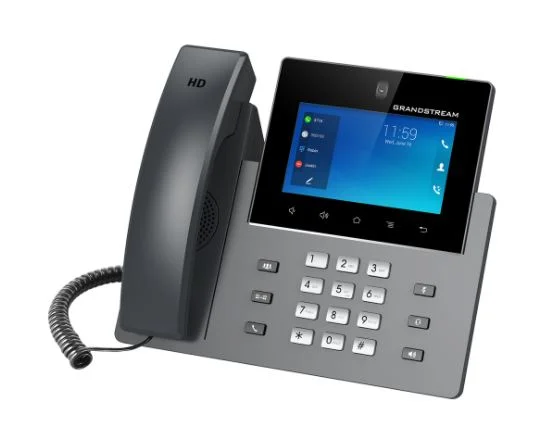

GXV3350 Android 7 w/ 5.0″ LCD Touchscreen + Hardkeys IP Video Phone

GXV3380 Android 7 w/ 8.0″ LCD Touchscreen IP Video Phone





Specifications

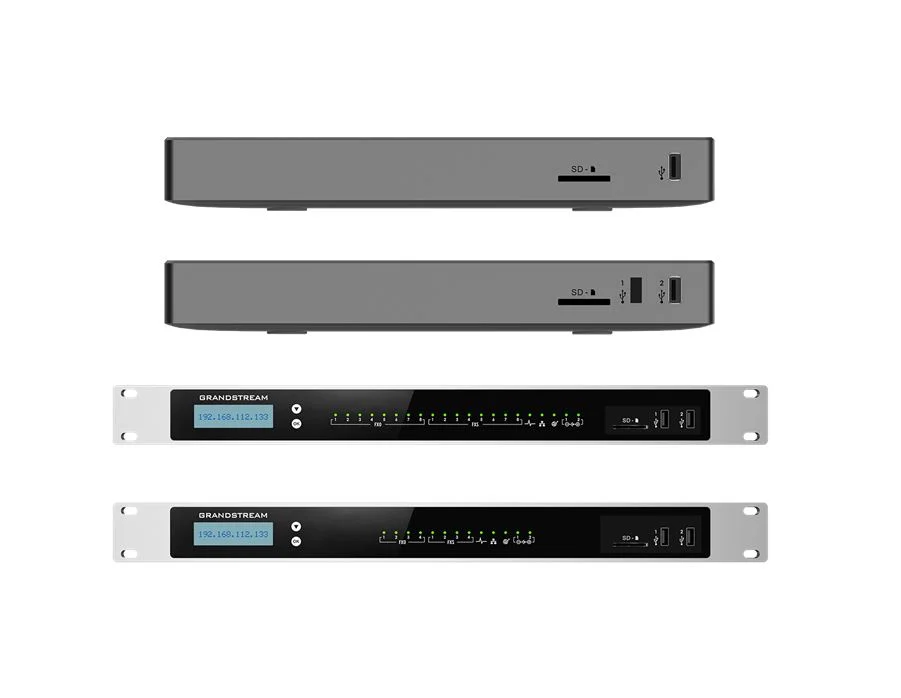

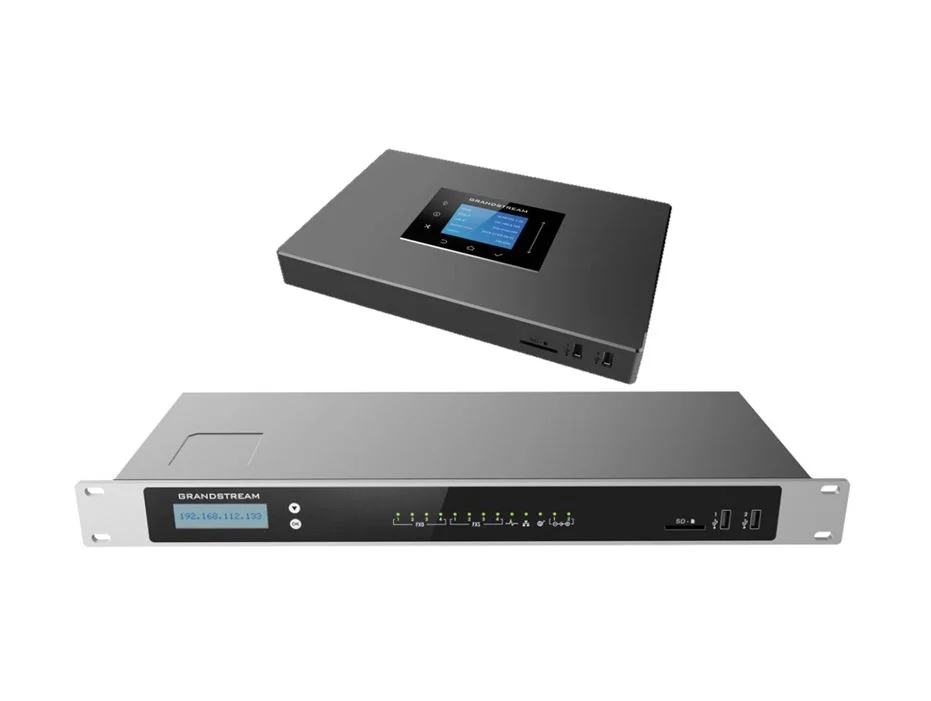

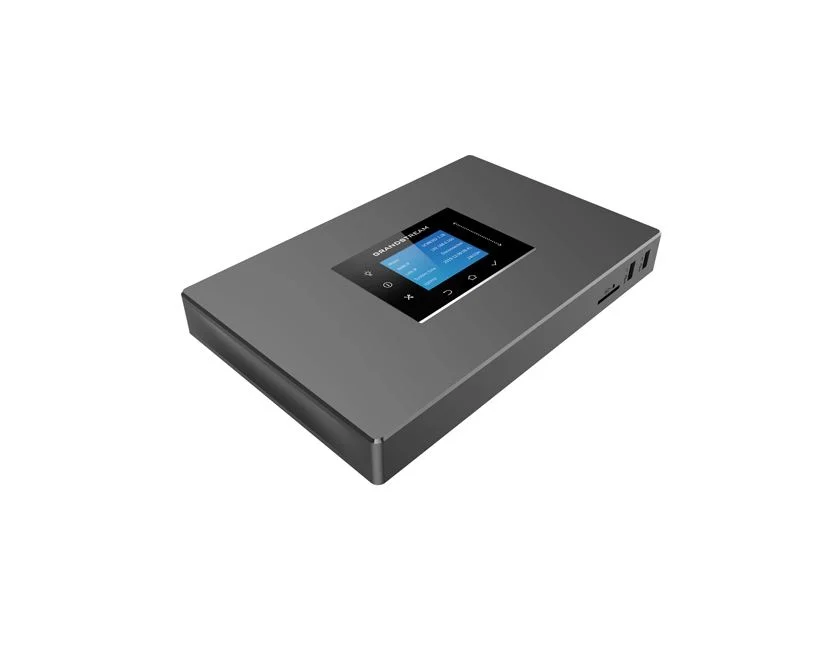

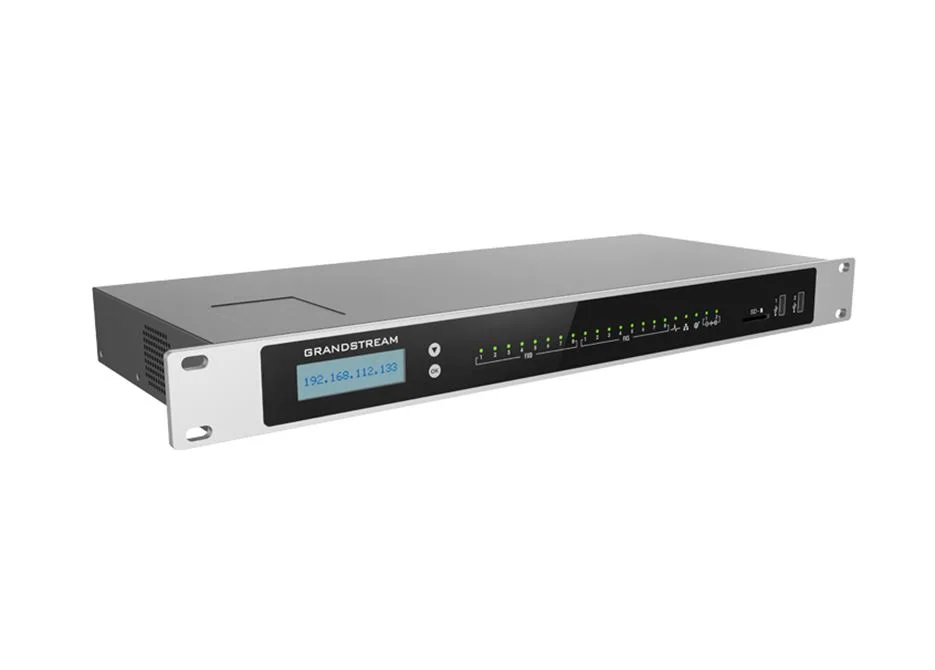

UCM6301 UCM6302 UCM6304 UCM6308

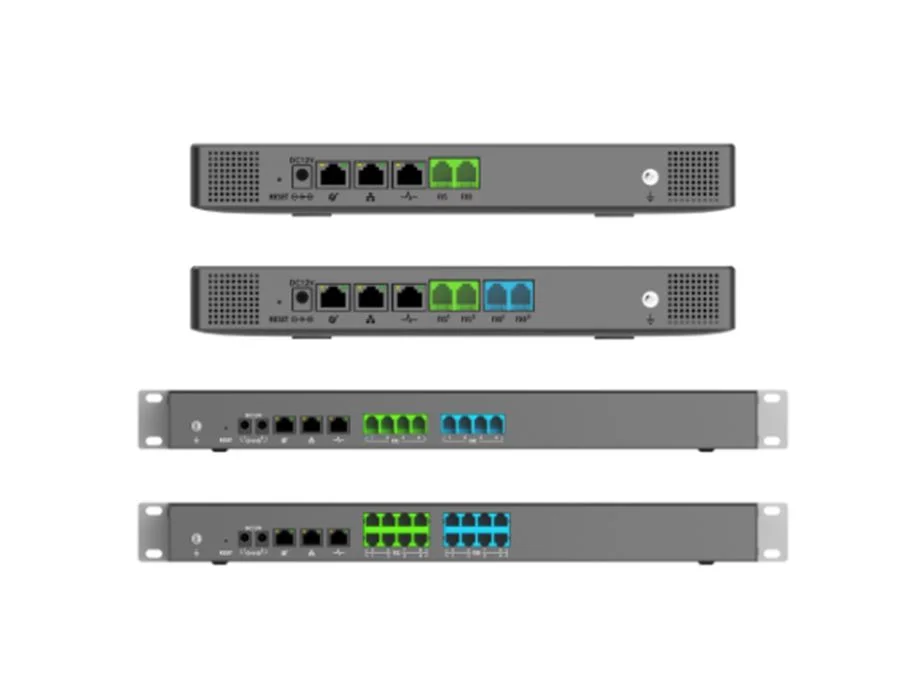

Analog Telephone FXS Ports  1 RJ11 Port 2 RJ11 Port 4 RJ11 Port 8 RJ11 Port
All ports have lifeline capability in case of power outage; number of ports can be expanded by peering with an FXS gateway
PSTN Line FXO Ports  1 RJ11 Port 2 RJ11 Port 4 RJ11 Port 8 RJ11 Port
All ports have lifeline capability in case of power outage; number of ports can be expanded by peering with an FXO gateway
Network Interfaces  Three self-adaptive Gigabit ports (switched, routed or dual mode) with PoE+
NAT Router  Yes (supports router mode and switch mode)
Peripheral Ports 1*USB 3.0, 1*SD card interface 1*USB 2.0, 1*USB 3.0, 1*SD card interface 2*USB 3.0, 1*SD card interface
LED Indicators None Power 1/2, FXS, FXO, LAN, WAN, Heartbeat
LCD Display 320×240 color LCD with touch screen for Shortcut Keys and Scroll 128×32 dot matrix graphic LCD with DOWN and OK buttons
Reset Switch Yes, long press for factory reset and short press for reboot
Universal Power Supply Input: 100 ~ 240VAC, 50/60Hz; Output: DC 12V, 1.5A 2x DC 12V Power Jack
Input: 100~240VAC, 50/60Hz;Output: DC 12V, 2A
Dimensions  270mm(L) x 175mm(W) x 36mm(H) 485mm(L) x 187.2mm(W) x 46.2mm(H)
Weight  Unit Weight: 715g;   Package Weight: 1211g Unit Weight: 725g;
Package Weight: 1221g		 Unit Weight: 725g;
Package Weight: 1221g		 Unit Weight: 2550g;
Package Weight: 3320g
Temperature & Humidity Operating: 32 – 113ºF / 0 ~ 45ºC, Humidity 10 – 90% (non-condensing)
Storage: 14 – 140ºF / -10 ~ 60ºC, Humidity 10 – 90% (non-condensing)
Caller ID  Bellcore/Telcordia, ETSI-FSK, ETSI-DTMF, SIN 227 – BT, NTT
Polarity Reversal/Wink Yes, with enable/disable option upon call establishment and termination
Call Center  Multiple configurable call queues, automatic call distribution (ACD) based on agent skills/availability/
work-load, in-queue announcement
Customisable Auto Attendant  Up to 5 layers of IVR (Interactive Voice Response) in multiple languages
Maximum Call Capacity  Users: 500
Concurrent calls (G.711): 75
Max concurrent SRTP calls
(G.711): 50		 Users: 1000
Concurrent calls (G.711): 150
Max concurrent SRTP calls
(G.711): 100		 Users: 2000
Concurrent calls (G.711): 300
Max concurrent SRTP calls
(G.711): 200		 Users: 3000
Concurrent calls (G.711): 450
Max concurrent SRTP calls
(G.711): 300
Maximum Attendees of
Conference Bridges 		 4 Video Conference rooms and
up to 20 parties with 1080p,
assuming 4 video feeds + 1
screen sharing (H.264 & Opus)
Voice Conference: Up to 75
parties (G.711)		 6 Video Conference rooms and
up to 30 parties with 1080p,
assuming 4 video feeds + 1
screen sharing (H.264 & Opus)
Voice Conference: Up to 150
parties (G.711)		 8 Video Conference rooms and
up to 60 parties with 1080p,
assuming 4 video feeds + 1
screen sharing (H.264 & Opus)
Voice Conference: Up to 200
parties (G.711		 10 Video Conference rooms
and up to 80 parties with
1080p, assuming 4 video feeds
+ 1 screen sharing (H.264 &
Opus)
Voice Conference: Up to 300
parties (G.711)
Wave App Free; Available for desktop (Windows 10+, Mac OS 10+), web (Firefox and Chrome Browsers) and mobile (Android & iOS), allows users to join UCM-hosted meetings/conferences, communicate with other users/solutions and make/receive calls using SIP accounts registered to a UCM6300 series IP PBX
Call Features  Call park, call forward, call transfer, call waiting, caller ID, call record, call history, ringtone, IVR, music on hold, call routes, DID, DOD, DND, DISA, ring group, ring simultaneously, time schedule, PIN groups, call queue, pickup group, paging/intercom, voicemail, call wakeup, SCA, BLF, voicemail to email, fax to email, speed dial, call back, dial by name, emergency call, call follow me, blacklist/whitelist, voice conference, video conference, eventlist, feature codes, busy camp-on/ call completion, voice control, post-meeting reports, virtual fax sending/receiving, email to fax
Firmware Upgrade  Supported by Grandstream Device Management System (GDMS), a zero-touch cloud provisioning and management system, It provides a centralized interface to provision, manage, monitor and troubleshoot Grandstream products
