Synway SMG1000-D32SPR FXS VoIP Gateway

SMG1000-D32SPR Analog Gateway converts analog PSTN messages into a format suitablefortransmission over standard IP networks. The device offers 32 FXS ports, fax over IPandflexibledial plans. It is ideally suited for small and medium businesses, call centers and multi-locationenvironments that need VoIP services. SMG1000-D32SPR supports the standardSIPprotocol andit’s compatible with leading IMS/NGN platforms and SIP- based IP telephony systems.

• Cost effective gateway with 32 FXS ports
• Fax over IP (T.38 and Pass-Through)
• Support IPv4 and IPv6
• TR069 and SNMP
• Multiple codecs: G.711A/U,G.723.1,G.729A/B,AMR, etc.
• Fully compatible with leading IMS/NGN, SIP based IP telephony system

Key Features and Benefits

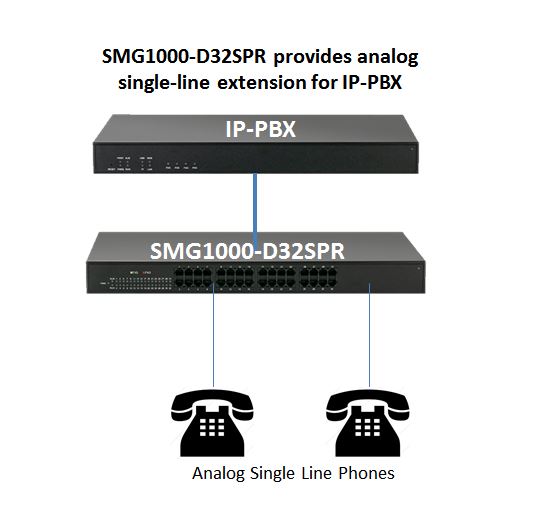

Fit to Diverse Applications – Used to connect IP telephones to a legacy PBX, integrate network-hosted applications withthePBX,extend the PBX to branch offices, and integrate various voice and call processing capabilities in an enterprise LAN or WAN environment.

Flexible Call Routing – Route calls from the switched network to a VoIP destination on the IP network or conversely, and support the following call routing options: TDM to IP or IP to TDM, with IP load balancing, IP fault tolerance.

Controlled Migration to IP – Compatible with general FXS lines, and a variety of popular PBX manufacturers (Digital PSTN lines compliance would be available), and protects investment in legacy telecommunications equipment.

User-Friendly Management – Supports configuration via serial, Telnet, and a web browser including context-sensitive help Easy to install, configure, debug, and maintain.

Enhanced Voice/Fax Processing – Supports a variety of compression algorithms, including G.711 A-law and μ-law, G.729A/B; Transcode fax from T.30 fax protocol (supporting V.17) to T.38 for transmission over a packet network.

Web Server Interface & Hot Swap – Each gateway unit is delivered with a web server interface, allowing configuration and software upgrades via a web browser; Allows gateway units to be added or removed without affecting other gateway.
